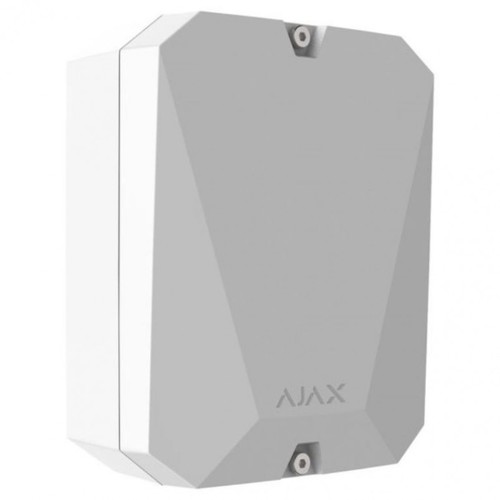

A module for connecting Ajax security systems to third-party VHF transmitters. vhfBridge is a transponder that provides the hub with another communication channel with the monitoring console. With the vhfBridge module, the Ajax system can be used in cities with unstable internet, mountains, nature reserves or desert areas. vhfBridge allows system alarms and events to be transmitted over VHF radio waves over tens of kilometers. It can be used as a primary or backup communication channel.

Sophisticated autonomy
A backup battery up to 7 Ah is installed in the vhfBridge case, from which you can power the VHF transmitter with a consumption of up to 2 A. This allows you not to equip the transmitter with a battery and reduces the frequency of its maintenance. In the event of a loss of power at the facility, the transponder and transmitter operate from a backup battery for up to 75 hours2, continuing to transmit events to the monitoring console.
Up to 75 hours2 operation with on-site power failure
Place for a battery up to 7 Ah

Custom signaling
Get only the events you need. Each vhfBridge output can be configured in the Ajax application: set an event or disable it.

Uncompromising Communication Reliability
vhfBridge communicates with the hub using the encrypted Jeweler radio protocol. It guarantees uninterrupted interaction of all devices of the security system. The radio protocol uses frames to synchronize device communication sessions, authentication to prevent forgery, and encryption to protect against data theft.

Mounting without puzzles
Like other Ajax devices, vhfBridge connects to the hub in the app by reading a QR code. Perforated sections are provided in the transponder case for accurate wiring. Outputs are configured through Ajax applications for smartphones and computers.

Characteristics:
Color: White and black
Classification: Transponder for communication with the monitoring station via VHF transmitter
Installation: Indoor
Number of potential exits: 8
Output types: High potential and low potential (depending on settings)
Transmission modes: Pulse and bistable (depending on zone type) Recommended VHF transmitters: Hawk VHF Alarm Transmitter from FSK Electronics, TX750C from RDC, TR-41 from Puper
Ajax Central Compatibility: Works with Hub 2, Hub Plus, Hub 2 Plus
Compatibility with Ajax relays: +
Compatible with third party VHF transmitters: Any VHF transmitter with relay inputs can be connected to vhfBridge
Alarm photo verification support: No
Main power: 100-240V, 50/60Hz
Backup power: 12 V—, up to 75 hours of transponder and transmitter power supply
Supported battery type: 12 V battery with up to 30 hours full charge cycle.
The maximum size of the battery for installation in the case - 150 × 64 × 94 mm
Recommended battery type: 12V 4Ah or 7Ah battery Backup battery not included
Power supply for VHF transmitter: 12V-, 2A
Anti-tampering: Anti-tampering, Jamming alert, Tamper and tear-off tampers, Backup battery
Radio Protocol Jeweler
Communication range - up to 1800 m in the absence of obstacles
Two-way communication between devices Operating frequencies - 868.0-868.6 MHz
Self-regulating radio signal power - up to 25 mW
Block encryption based on the AES algorithm Sensor polling period — 12-300 s Frequency hopping
Maximum radio signal power: ≤ 25mW
Protection class: IP50
Operating temperature range: From -10°С to +40°С
Operating Humidity: Up to 75%
Dimensions: 196 x 238 x 100mm (with case), 145 x 89 x 51mm (without case)
Weight: 840 g (with case), 165 g (without case)
Package contents vhfBridge Power cable 12 V battery connection cable Mounting kit Housing (depending on the kit) Quick instructions
Service life: 10 years
