Bezvadu kustības detektors ar iebūvēto kameru
Nostrādājot trauksmei detektors veic fotofiksēšanu
Darbam nepieciešams HUB2


Classification
Electro-optical combined radio channel security detector with a photo camera

Detector type
Wireless

Installation
Indoors

Motion detection distance
Up to 12 m

Pet immunity
Weight: up to 20 kg
Height: up to 50 cm

Compatibility
Only with Hub 2

Sensing element
PIR sensor

Detection angles
Horizontal — 88.5°
Vertical — 80°

Camera view angle
90°

Alarm signal delivery time
0.15 sec

Photo verification
Time to deliver a photograph with default settings: up to 9 sec

Photo quality: up to 640 × 480

Pictures in a series: 1-5 pcs

Learn more >

IR backlight for night mode pictures
Available

Sensitivity
Adjustable, 3 levels

Recommended installation height
2.4 m

Power supply
Batteries: CR123A (x2)

Power supply voltage: 3 V

Battery life: up to 4 years (up to 2.5 years if “Delay when entering” setting is activated)

Jeweller radio technology
Communication range with detectors: up to 1,700 m in the line of sight
Two-way communication between devices
Operating frequencies: 868.0-868.6 MHz
Self-adjusting RF output power: up to 20 mW
Block encryption based on AES algorithm
Detector polling period: 12−300 s
Frequency hopping

Learn more about Jeweller >

Wings radio technology
Transmission of visual alarm verifications

Temperature sensor
Available

Operating temperature range
From 0°С to +40°С

Operating humidity
Up to 75%

Anti-sabotage
Fraud protection
Jamming notification
Tamper-resistant

CMS compatibility
Motion alarms are transmitted to CMSs that support SIA and Contact ID protocols

Visual alarm verifications are transmitted to the Manitou CMS and Ajax PRO Desktop app

Remote configuration and testing
+

Protection class
IP50

Dimensions
135 × 70 × 60 mm

Weight
167 g

Warranty
Replacement and repair for a period of 24 months from the date of sale. The warranty does not cover batteries.



Complete Set

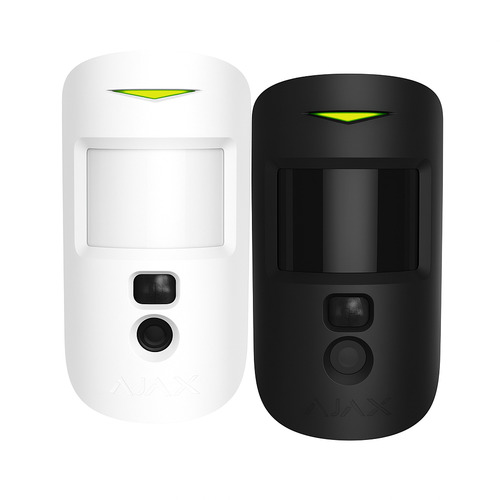

MotionCam motion detector
SmartBracket mounting panel
x2 CR123A batteries (pre-installed)
Installation kit
Quick Start Guide
